laser engraving machine co2 two head

Brand:Zhongcan

Application:Laser Engraving

Applied Material:Acrylic, Crytal, Glass, Leather, Mdf, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood

Engraving Area:Other

Laser Type:Co2

Support Graphic Format:Ai, Plt, Dxf, Bmp, Dst, Dwg, Las, Dxp

Old And New:New

Whether CNC:Yes

Cooling Method:Water Cooling

Place Of Origin:China

Certification:Ce, Iso, Gs, Sgs, Ccc

Industrial Laser Brand:Ii-Vi

Servo Motor Brand:Fuji

Linear Guide Brand:Pmi

Laser Machine Control System Brand:Ruida

Optical Lens Brand:Ii-Vi

Core Selling Point:Easy To Operate

Warranty Period:3 Years

Applicable Industry:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works, Energy &Amp; Mining, Food &Amp; Beverage Shops, Advertising Company

Out-of-warranty Service:Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets):Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, Uae, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan

Showroom Location (in Which Countries Are There Sample Rooms Overseas):Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, Uae, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, Australia

Mechanical Test Report:Provided

Video Factory Inspection:Provided

Marketing Type:New Product 2020

Core Component Warranty Period:3 Years

Core Components:Motor

Cooling Mode:Water Cooling

Guiderail Brand:Pmi

Cutting Speed:0~30000mm/Min

Control System Brand:Rdworks

Positioning Way:Red Light

Marking Depth:25mm

Repetition Precision:0.001mm

Cutting Area:1300*900mm

Place Of Origin:Shandong, China

CNC Or Not:Yes

Laser Type:Co2

Engraving Speed:500mm/S

Optical Lens Brand:Ii-Vi

Warranty Of Core Components:3 Year

Laser Source Brand:Reci/Yongli/Efr

Weight (KG):380 Kg

Selling Units	:	Set/Sets
Package Type	:	Standard Sea Freight Package/Non steaming wooden box packing
Picture Example	:

Advantages:
1. english version wood laser cutter  software program assisting 10 usually used picture formats.
2. dsp off-line manipulate  with timber laser cutter usb port interface
3. this timber laser cutter  us imported tube focusing lenses, preference of  four”, 2.5″  focal lengths.
4. focusing of this timber laser cutter   is simple by using touching  button, takes simplest three seconds, which with excessive spee
5. all wood laser cutter  are featured a purple dot alignment pointer, helping you to properly function your work underneath the laser head

Model	ZC-DK-CO2
Laser Type	CO2 sealed laser tube,water-cooled 10.6um
Laser Power	60W/80W/100W/130W/150W/180
Marking Area	1300*900mm 51inch*35inch
Engraving speed	0-60000mm/min / 0-2362in/min
Cutting Speed	0-30000mm/min / 0-1181in/min
Repetition Precision	0.001mm
Laser Source	Reci/Yongli
Total Power	220V±10% /50HZ 110V±10%//60HZ
Supported Windows	All Windows
Supported Format	PLT/AI/DXF/BMP/DST/DWG/LAS
Min. shaping character	Letter 1.0 x 1.0mm
Highest Scanning Precision:	2500DPI
Machine size	1850*1310*1140mm 72.8*51.5*44.8inch
package size	2000*1470*1330mm 78.7*57.8*44.8inch
Net Weight /Gross weight	380KGS/500KGS
Optional part	Up and down table, rotary attachment, red light pointer, auto focus system

01 CO2 Laser Tube

Adopt the new high-efficiency CO2 laser tube of RECI, the 100W CO2 laser tube can reach a peak of 122W. The laser beam is more stable and the life of the laser tube can exceed 10,000 hours.

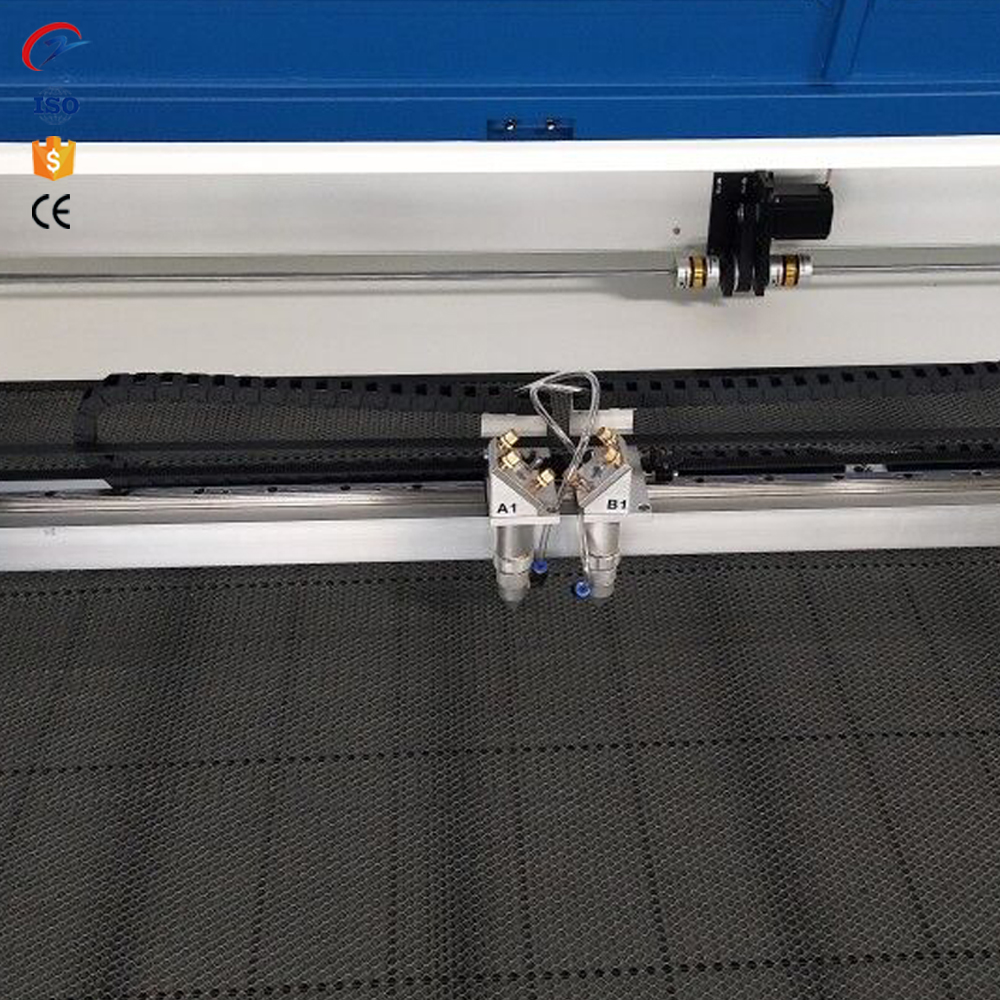

02 Adjustable Laser Head

The aluminum alloy adjustable laser head is lighter than other metal laser heads, which can minimize the inertia error when the laser head moves.” The structure is simple, the operation is convenient, the laser device is stable,and the maintenance cost is low.

03 Taiwan HIWIN Guide Slider

Taiwan Hiwin square guide rails are made of high-strength special steel to ensure that the laser machine does not deform continuously for a long time. Improve laser engraving and cutting accuracy and extend the working life of the machine.

04 Perfectly Tidy Power Supply System

The power supply system of the whole machine is strictly in accordance with international standards. Different control power signal lines adopt separate routing design, and the whole is clean and tidy, avoiding electromagnetic interference between various types of signal lines.

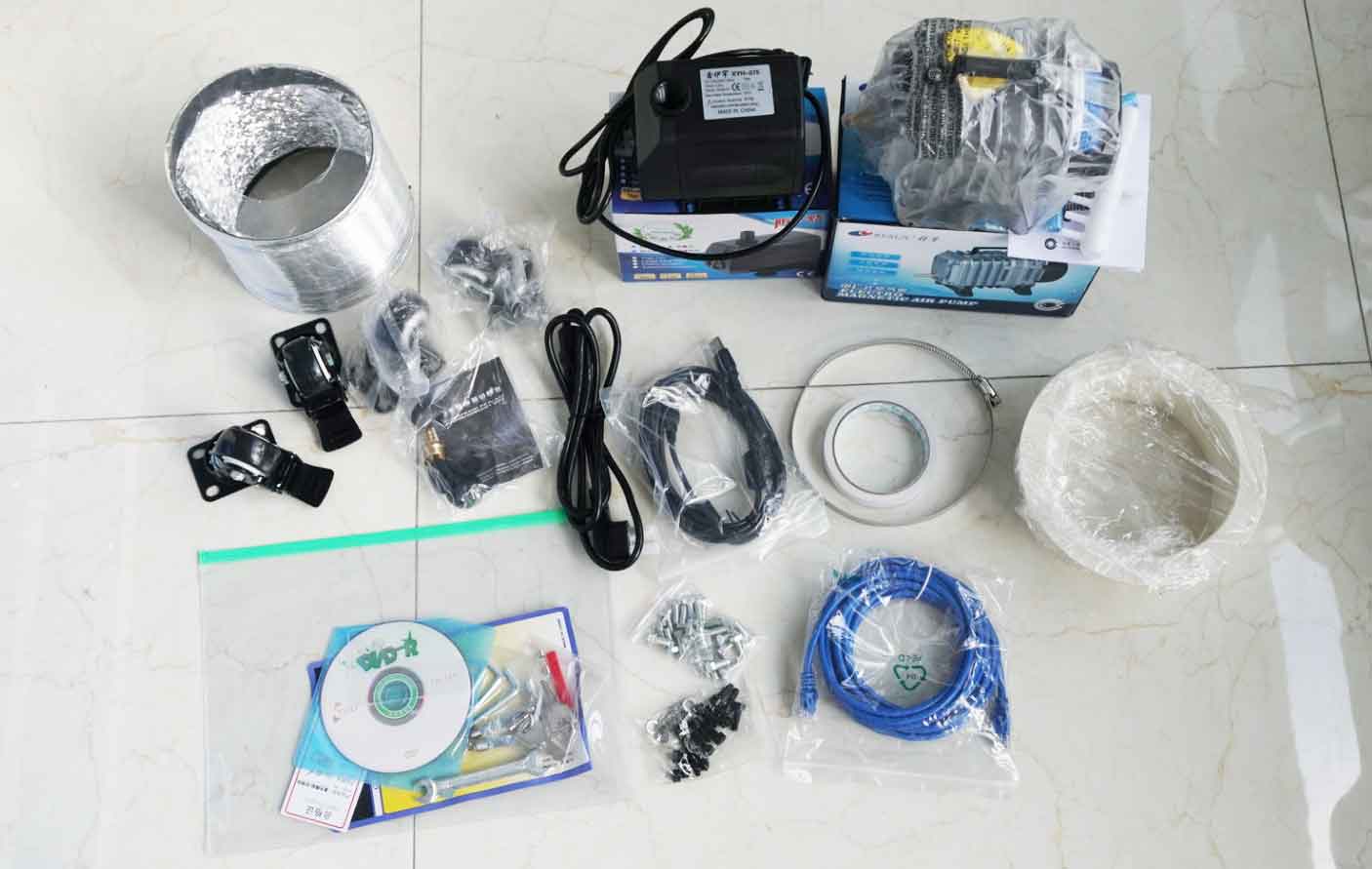

05 accessory

Laser tube Power cord Data line Focal length ruler Tobacco tube Encryption lock Chimney Focal length ruler Toolbox/CD (software/tutorial/instruction)
