laser cleaning and welding machine 3 in 1

Model No.:ZC-QX-F

Brand:zhongcan

Status:New

Place Of Origin:China

Certification:Ce, Iso, Gs, Sgs, Ul

Warranty Period:3 Years

Industrial Laser Brand:Raycus

Industrial Laser Head Brand:Raytools

Servo Motor Brand:Fuji

Linear Guide Brand:Hiwin

Core Selling Point:Easy To Operate

Applicable Industry:Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Construction Works, Advertising Company

Out-of-warranty Service:Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets):Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, Uae, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan

Showroom Location (in Which Countries Are There Sample Rooms Overseas):Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, Uae, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, Australia

Mechanical Test Report:Provided

Video Factory Inspection:Provided

Marketing Type:Ordinary Product

Core Component Warranty Period:3 Years

Core Components:Motor

Machinery Test Report:Provided

Video Outgoing-inspection:Provided

Wavelength:1080nm

Place Of Origin:Shandong, China

Cooling System:Water Cooling Industrial Chiller

Laser Power:1000w / 1500w / 2000w

Weight (KG):240 Kg

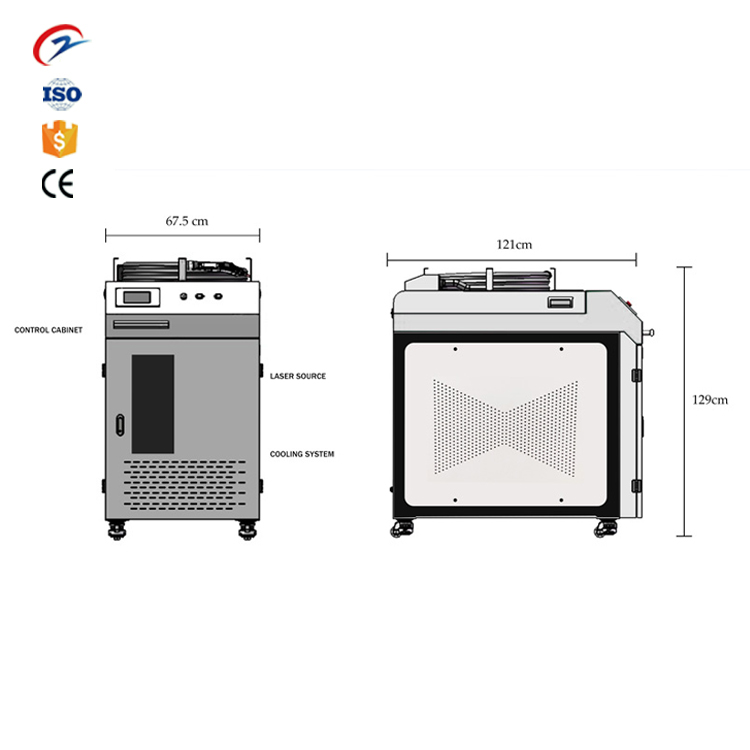

Dimensions:100*73*150cm

Voltage:220V/380V/Customized

Usage:Metal cleaning Rust/Paint removal

Application Material:All Metal and stone

Selling Units	:	Set/Sets
Package Type	:	Bubble Wrap and Smoked Wooden Case Packing
Picture Example	:

“

Handheld Fiber Laser Cleaning Machine

Benefits

1. all-in-one cupboard, collectively with laser、chiller、touch display display、control tool, small footprint
2. zhongcan uses the pleasant lasers and chillers, and the machine electricity stability is ninety nine%
Three. non-touch cleaning, with little damage to materials
Four. plug and work, fast cleaning and immoderate efficiency
Five. parameters can be adjusted, width may be set, and components which are hard to reap via traditional techniques additionally may be wiped clean
5. can clean herbal and inorganic contaminants, along with metal rust, dirt, paint, oil
6. no consumables, lengthy machine lifestyles
7. no chemical pollutants, environmental safety

Disadvantage:

High rate of purchasing gadget

Other product

Fiber Laser Cutting Machine/Fiber Laser Welding Machine/Fiber Laser Marking Machine/co2 laser engraving amchine/fiber Laser cleaning machine

Product parameter

Model	ZC-Weld-2022	Laser Source	Raycus/MAX/JPT/IPG
Laser Type	Fiber Laser	Positioning Way	Red Light
Laser Power	1000W/1500W/2000W	Cooling Way	Water Cooling Industrial Chiller
Fiber Core Diameter	50μm	Laser Head	Zhongcan Customized
Laser Wavelength	1080nm	Welding Speed Range	0~120mm/s
Frequency Of Pulse	50~20khz	Output power stability	±1%
Fiber Laser Optic Length	10M-15M	Output Power Tunability (%)	10-100%
Humidity Range	﹤85%	Ambient Temperature	10℃~40℃

1. Raycus/MAX/JPT Laser Source

· 100,000 hours of lifetime, free maintenance;

· High electro-optical conversion efficiency (up to 25-30%), excellent beam quality, high energy density,

· Low energy consumption

2. Laser Welding Head

· It is easy to use and adopts double protective layer to protect the lens.

· It is light in weight

 3. Industrial Water Chiller

·Automatically adjust the temperature according to different working environment, no need to change settings parameters;

·Intelligent dual temperature dual control mode ;

·Multiple alarm protection;

Sample Show

Materials Titanium, aluminum, copper, zinc, gold, silver, carbon steel and stainless steel, and also cooperbrass, cooper-titanium, nickel-cooper, cooper-titanium and many other dissimilar metals.

“
