Fiber Laser Cutting machine for metal Plate

Model No.:ZC-3015SEC

Brand:ZHONGCAN

Application:Laser Cutting

Applied Material:Metal

Old And New:New

Laser Type:Fiber Laser

Cutting Area:1500mm*3000mm

Support Graphic Format:Ai, Plt, Dxf, Bmp, Dst, Dwg, Las, Dxp

Whether CNC:Yes

Cooling Method:Water Cooling

Place Of Origin:China

Certification:Ce, Sgs, Ccc

Industrial Laser Brand:Ipg

Industrial Laser Head Brand:Raytools

Servo Motor Brand:Yaskawa, Schneider

Linear Guide Brand:Hiwin

Laser Machine Control System Brand:Cypcut

Core Selling Point:Automatic

Optical Lens Brand:Wavelength

Warranty Period:2 Years

Out-of-warranty Service:Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Applicable Industry:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works, Energy &Amp; Mining, Food &Amp; Beverage Shops, Advertising Company

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets):Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, Uae, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan

Showroom Location (in Which Countries Are There Sample Rooms Overseas):Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, Uae, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, Australia

Mechanical Test Report:Provided

Video Factory Inspection:Provided

Marketing Type:New Product 2020

Core Component Warranty Period:2 Years

Core Components:Motor, Bearing, Gear, Pump, Engine

Machinery Test Report:Provided

Video Outgoing-inspection:Provided

Guiderail Brand:Hiwin

Control System:Cypcut System

Power Supply:380v 50hz

Place Of Origin:Shandong, China

CNC Or Not:Yes

Cutting Thickness:Depends

Weight (KG):6000 Kg

Cutting Speed:0-40m/Min, 0-40000mm/Min

Graphic Format Supported:Ai, Plt, Dxf, Dst, Las, Dxp

Laser Wavelength:1064nm

Selling Units	:	Set/Sets
Package Type	:	Standard Sea Freight Package
Picture Example	:

“

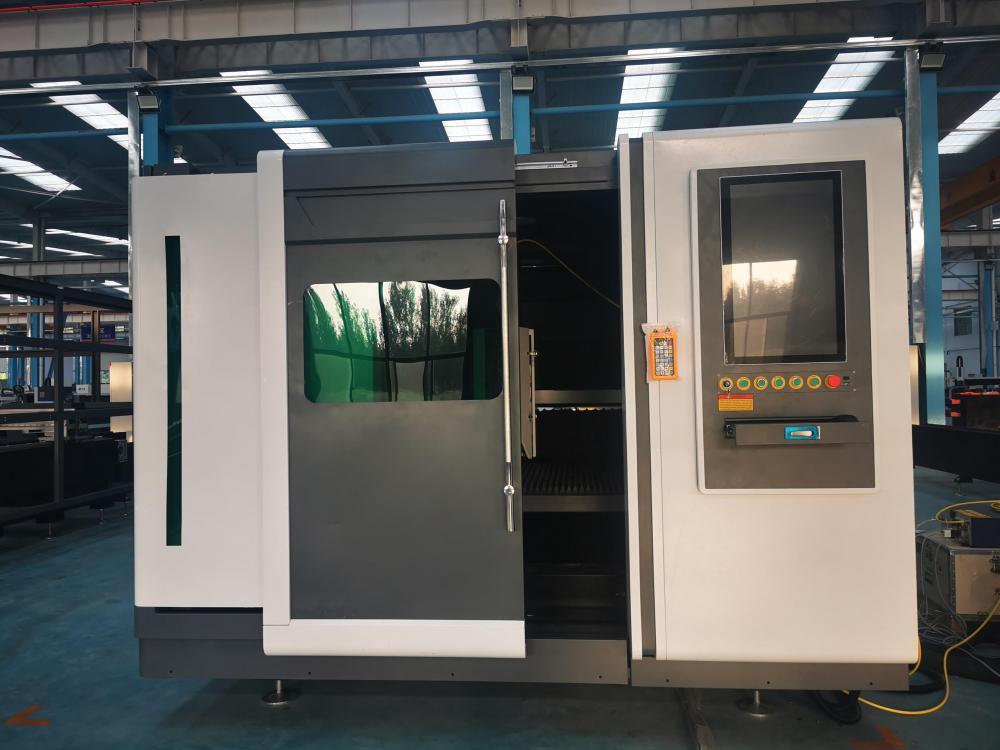

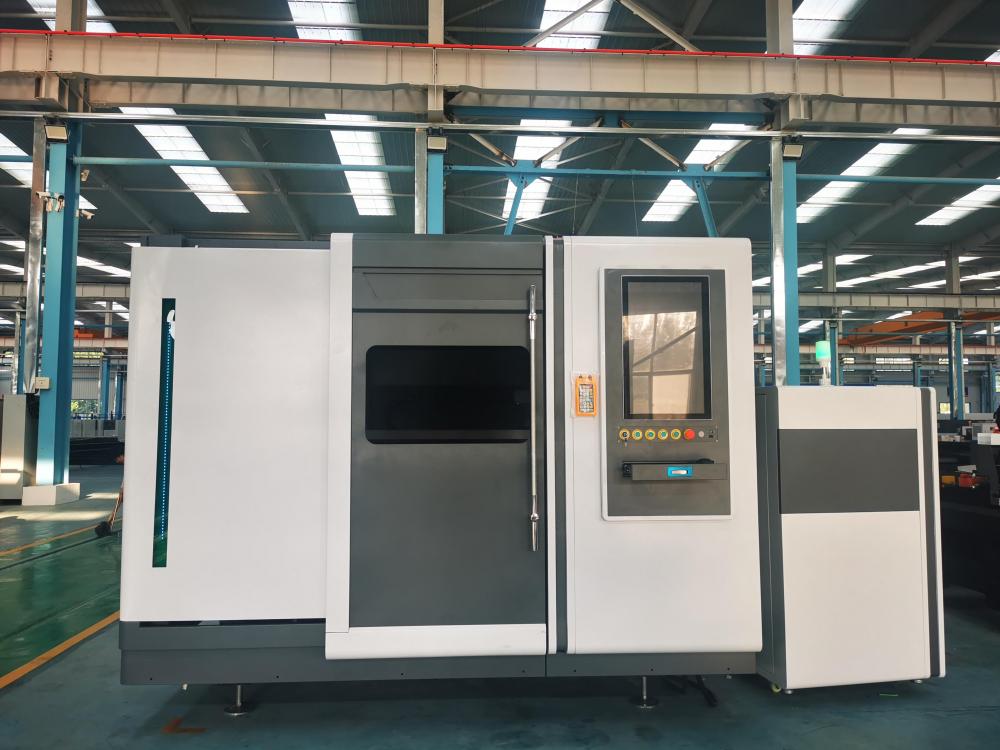

Exchange Table Fiber Laser Cutting Machine

ZC-3015SEC is fast speed mild steel Cnc Fiber Laser Cutting Machine with 3000*1500mm working area, which consist of machine tool,motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts,so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis of aluminium stainless steel sheet cutting machine adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.

Fiber Laser Cutting Machine,Cnc Plasma Laser Cutting Machine,Laser Cutting Machine Sheet Metal

Fiber Laser Cutting Machine,Cnc Plasma Laser Cutting Machine,Laser Cutting Machine Sheet Metal

Working area (L*W)	3000×1500mm
X/Y axis Repeated Position Precision	±0.02mm
Laser Generator	Germany-IPG / Wuhan-Raycus
Control System	Cypcut
Servo motor	Japan Yaskawa
Cutting head	Shenzhen WSX
Gantry	Aviation aluminum beam
Guide rail	Taiwan HIWIN square rail
Rack&pinion	Taiwan HIWIN famous brand
Speed Reducer	Japan SHIMPO
Water chiller	China Tongfei/HANLI
Proportional valve	Japan SMC
Electronics	France Schneider
Voltage	Three-phase 380V 50/60Hz

Product Features:

1. Automatic Lubrication

With automatic lubrication system, it provides the lubrication at regular intervals and extends the life of the transmission mechanism.

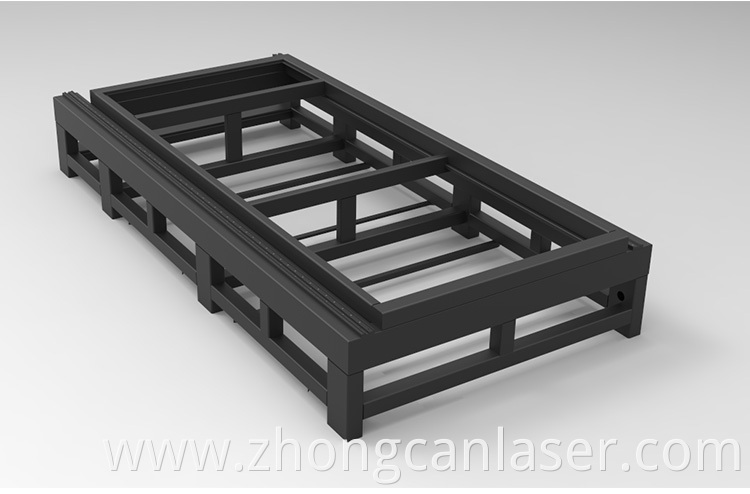

2. Thick Steel Welding Bed

8~12mm thickness steel welding machine bed instable strcture, it can relase the internal stress by welding after high temperature annealing treatment

3. Gantry Structure

Stable dual transmission system, high tensity follow-up moudle of cutting head to prevent from crashing on metal sheet, ensure the machine can running safely.

4. Material Saving

Apply to standard metal sheet cutting, it will help to save time and material.

1.High quality carbon steel welding bed, high temperature annealing treatment, reduce the internal stress and deformation, its rigidity is strong, high structural stability.

2.Laser Source

Lower maintenance costs; compact size; movable, more durable; low consumption, environmental-friendly; etc.

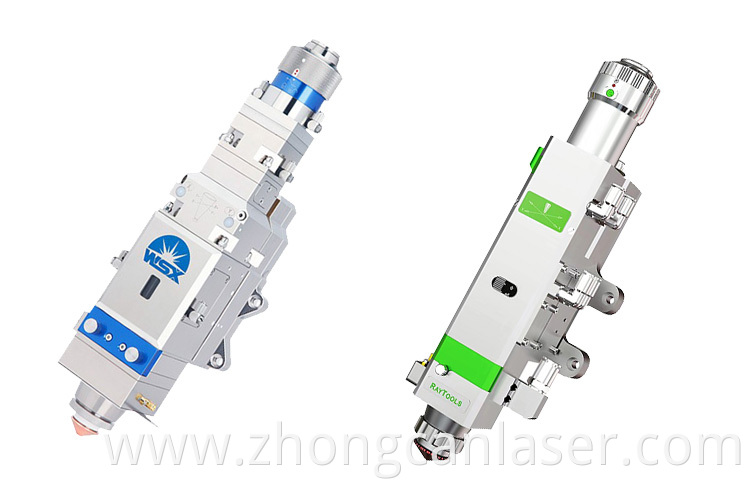

3.Raytools brand Autofocus

auto focal position adjustment; No-contact height sensor; Horizontal lens adjustment; Switzerland brand

4.Square Guide Rail HIWIN from Taiwan

Precise design, easy to install; High rigidity and overweight load capacity; Low noise, smooth movement

5.Driving System France Schneider

Imported AC servo system and transmission system, rack drive inlet, linear guide, ensure high speed, high precision and high reliability.

6.Aero-aluminum Integrated Beam

* High precision. After manual aging, solution treatment and finishing, the beam has good integrity, rigidity, toughness and ductility.
* Fast speed. Aluminum alloy has the features of lightweight and strong rigidity, which is conducive to high-speed movement during processing, and high flexibility is conducive to the high-speed cutting of various graphics on the basis of high precision.

* High efficiency. The lighter weight beam can ensure the rapid operation of the equipment, improve the processing efficiency, and at the same time ensure the processing quality.
