3000w fiber laser cleaning machine

Brand:ZHONGCAN

Status:New

Power (Watts):1500w, 1000w

Applied Material:Stainless Steel, Carbon Steel, Aluminum, Stone, Metal

Video Factory Inspection:Provided

Mechanical Test Report:Provided

Marketing Type:New Product 2020

Core Component Warranty Period:1 Year

Core Components:Plc, Engine, Motor

Laser Type:Fiber Laser

Certification:Ce, Iso 9001:2000

Place Of Origin:China

Industrial Laser Brand:Raycus

Industrial Laser Head Brand:Wsx

Core Selling Point:Easy To Operate

Warranty Period:1 Year

Out-of-warranty Service:Video Technical Support, Online Support, Field Maintenance And Repair Service

Selling Units	:	Set/Sets
Package Type	:	Export standard wooden box
Picture Example	:

“

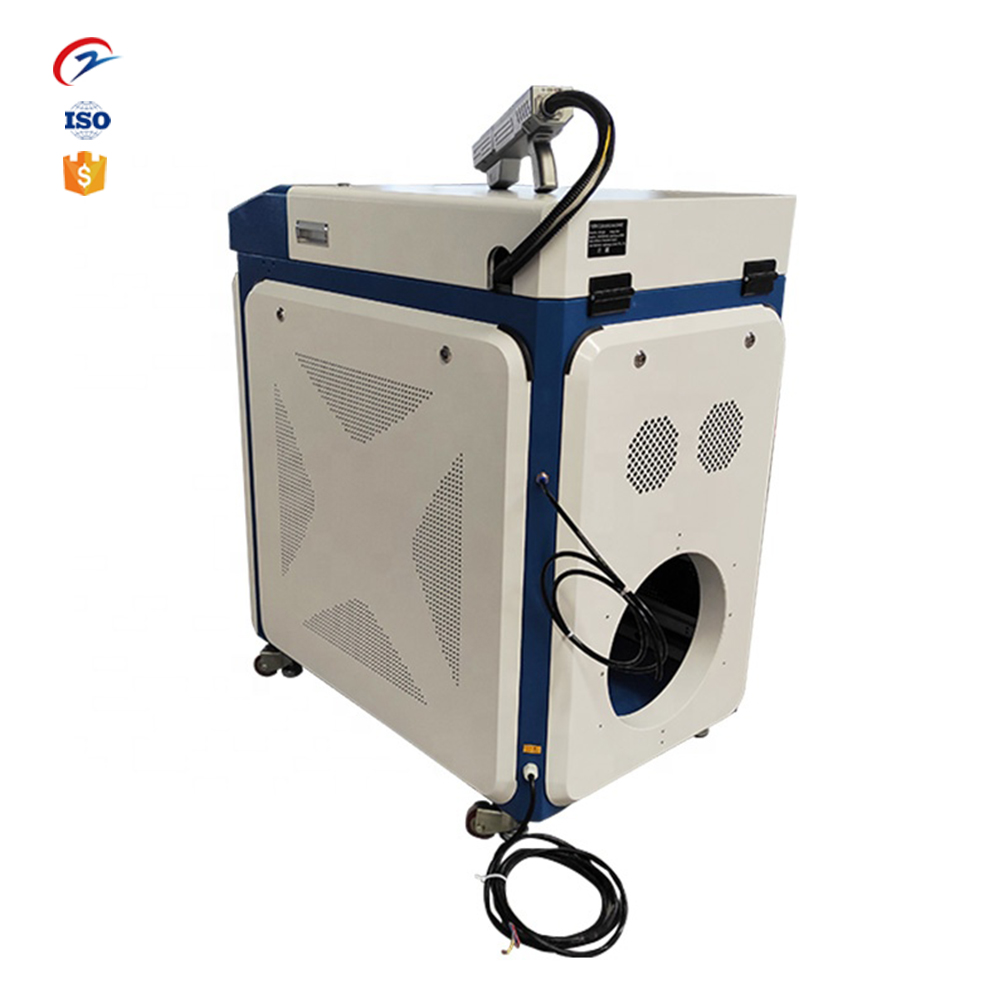

Handheld Fiber Laser Cleaning Machine

Advantages

1. all-in-one cabinet, together with laser、chiller、contact display screen、control tool, small footprint
2. zhongcan makes use of the first-rate lasers and chillers, and the machine electricity stability is 99%
3. non-touch cleansing, with little harm to materials
Four. plug and work, fast cleaning and excessive performance
Five. parameters may be adjusted, width can be set, and additives which might be tough to obtain through conventional techniques additionally may be wiped clean
Five. can smooth natural and inorganic contaminants, including steel rust, dirt, paint, oil
6. no consumables, long machine lifestyles
7. no chemical pollutants, environmental protection

Drawback:

High fee of purchasing gadget

Product parameter

Model	ZC-Weld-2022	Laser Source	Raycus/MAX/JPT/IPG
Laser Type	Fiber Laser	Positioning Way	Red Light
Laser Power	1000W/1500W/2000W	Cooling Way	Water Cooling Industrial Chiller
Fiber Core Diameter	50μm	Laser Head	Zhongcan Customized
Laser Wavelength	1080nm	Welding Speed Range	0~120mm/s
Frequency Of Pulse	50~20khz	Output power stability	±1%
Fiber Laser Optic Length	10M-15M	Output Power Tunability (%)	10-100%
Humidity Range	﹤85%	Ambient Temperature	10℃~40℃

1. Raycus/MAX/JPT Laser Source

· 100,000 hours of lifetime, free maintenance;

· High electro-optical conversion efficiency (up to 25-30%), excellent beam quality, high energy density,

· Low energy consumption

2. Laser Welding Head

· It is easy to use and adopts double protective layer to protect the lens.

· It is light in weight

3. Industrial Water Chiller

·Automatically adjust the temperature according to different working environment, no need to change settings parameters;

·Intelligent dual temperature dual control mode ;

·Multiple alarm protection;

Sample display

Materials Titanium, aluminum, copper, zinc, gold, silver, carbon steel and stainless steel, and also cooperbrass, cooper-titanium, nickel-cooper, cooper-titanium and many other dissimilar metals.
