1300*1000mm CO2 laser engraving machine

Model No.:ZC-DK-CO2

Brand:Zhongcan

Application:Laser Engraving

Applied Material:Acrylic, Rubber, Stone, Crytal, Glass, Wood, Leather, Mdf, Plastic, Plexiglax, Plywood, Paper

Engraving Area:Other

Laser Type:Co2

Support Graphic Format:Ai, Plt, Dxf, Bmp, Dst, Dwg, Las, Dxp

Old And New:New

Whether CNC:Yes

Cooling Method:Water Cooling

Place Of Origin:China

Certification:Ce, Iso, Gs, Sgs

Industrial Laser Brand:Ii-Vi

Servo Motor Brand:Yaskawa

Linear Guide Brand:Hiwin

Laser Machine Control System Brand:Ruida

Optical Lens Brand:Ii-Vi

Core Selling Point:High-Accuracy

Warranty Period:3 Years

Applicable Industry:Hotels, Food &Amp; Beverage Factory, Construction Works, Energy &Amp; Mining, Farms, Garment Shops, Building Material Shops, Restaurant, Food &Amp; Beverage Shops, Home Use, Retail, Manufacturing Plant, Machinery Repair Shops, Food Shop, Printing Shops, Advertising Company

Out-of-warranty Service:Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets):Egypt, Philippines, Spain, Chile, Ukraine, Kyrgyzstan, Uae, Thailand, Brazil, Canada, Turkey, Peru, Colombia, Japan, Nigeria, Uzbekistan, Algeria, Malaysia, Saudi Arabia, United Kingdom, United States, Indonesia, Australia, Sri Lanka, Tajikistan, Romania, Morocco, Pakistan, Italy, France, India, Kenya, Bangladesh, South Africa, Argentina, Mexico, Germany, Viet Nam, Russia, South Korea, Kazakhstan

Showroom Location (in Which Countries Are There Sample Rooms Overseas):Egypt, Philippines, Spain, Algeria, Nigeria, Uzbekistan, Sri Lanka, Thailand, Brazil, Canada, Turkey, Peru, Morocco, Romania, Tajikistan, Japan, Bangladesh, Kenya, Saudi Arabia, United Kingdom, United States, Indonesia, Argentina, South Africa, Malaysia, Australia, Kazakhstan, South Korea, Pakistan, Italy, France, India, Chile, Ukraine, Uae, Germany, Viet Nam, Colombia, Kyrgyzstan, Russia, Mexico

Mechanical Test Report:Provided

Video Factory Inspection:Provided

Marketing Type:New Product 2020

Core Component Warranty Period:3 Years

Core Components:Motor

Machinery Test Report:Provided

Warranty:3 Years

Place Of Origin:Shandong, China

Brand Name:Zhongcan

Weight (KG):380 Kg

Application:Laser Engraving

Repetition Precision:0.001mm

Engraving Speed:500mm/S

Control System Brand:Rdworks

Positioning Way:Red Light

Cutting Speed:0~30000mm/Min

Marking Depth:25mm

Dimension(L*W*H):1440*1120*1050mm

Cutting Area:1300*1000mm

Selling Units	:	Set/Sets
Package Type	:	Standard Sea Freight Package
Picture Example	:

“

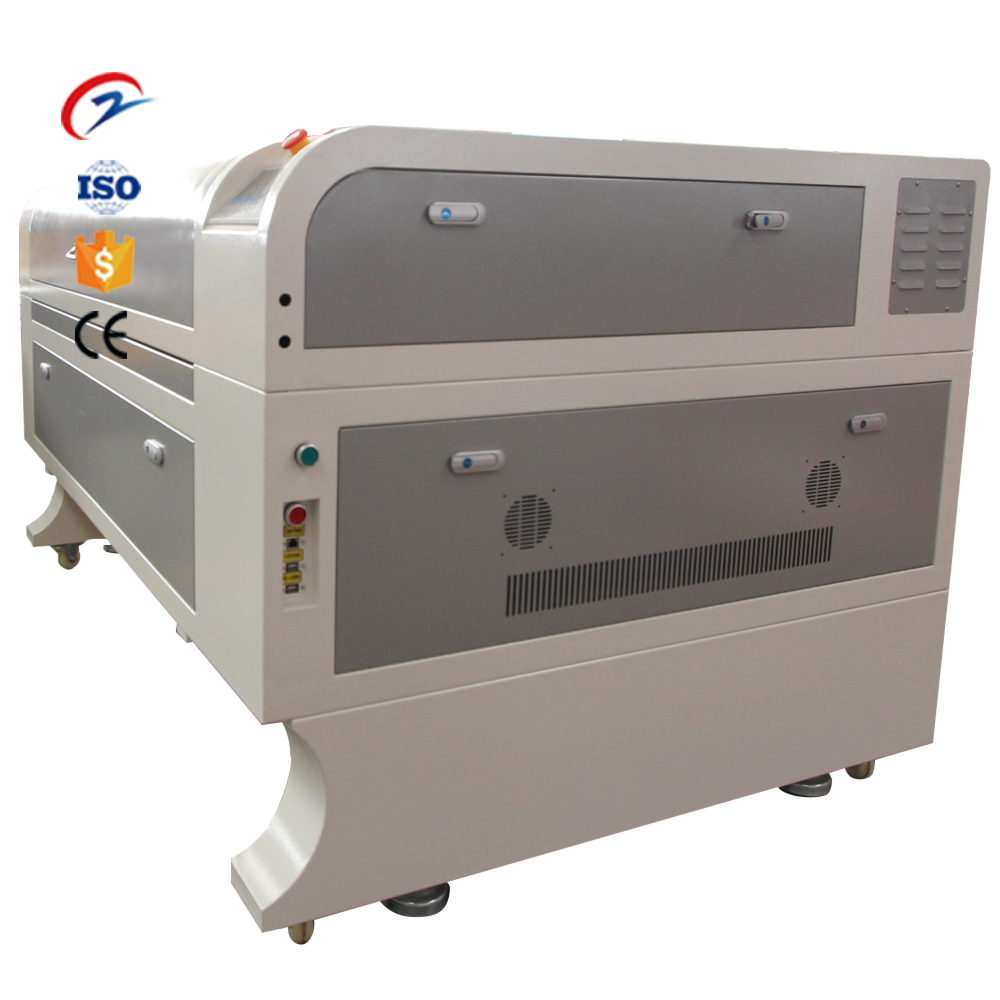

Co2 laser engraving and cutting machine. The machine is a kind of Laser Engraving Machine System equipped with CO2 laser Tube, it is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, ceramics and glass and etc. It is most suitable and the preferred choice of equipments in industries such as advertisement, gifts, shoes,toys and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI and so on.

This machine is equipped with DSP Control System for RDdraw directly,also supports CoreDraw and Auto CAD and other advance software. It must connect with computer with USB cable when you change the settings of machine for the design files,you can transfer the file with USB memory stick to the machine, or can download it to the machine directly with USB cable from computer. Even on the same Job, you can do setting with different colour in the software and also can making holes.And it can the legs separate from the main body of the machine. The machine has doors which can be opened to accommodate larger materials.

Model	ZC-DK-CO2
Laser Type	CO2 sealed laser tube,water-cooled 10.6um
Laser Power	60W/80W/100W/130W/150W/180/200W/220W
Work Area	1300*1000mm
Engraving speed	0-60000mm/min / 0-2362in/min
Cutting Speed	0-30000mm/min / 0-1181in/min
Repetition Precision	0.001mm
Laser Source	Reci/Yongli/EFR/ZHUORUI
Total Power	220V±10% /50HZ 110V±10%//60HZ
Supported Windows	All Windows
Supported Format	PLT/AI/DXF/BMP/DST/DWG/LAS
Min. shaping character	Letter 1.0 x 1.0mm
Highest Scanning Precision:	2500DPI
Optional part	Up and down table, rotary attachment, red light pointer, auto focus system
